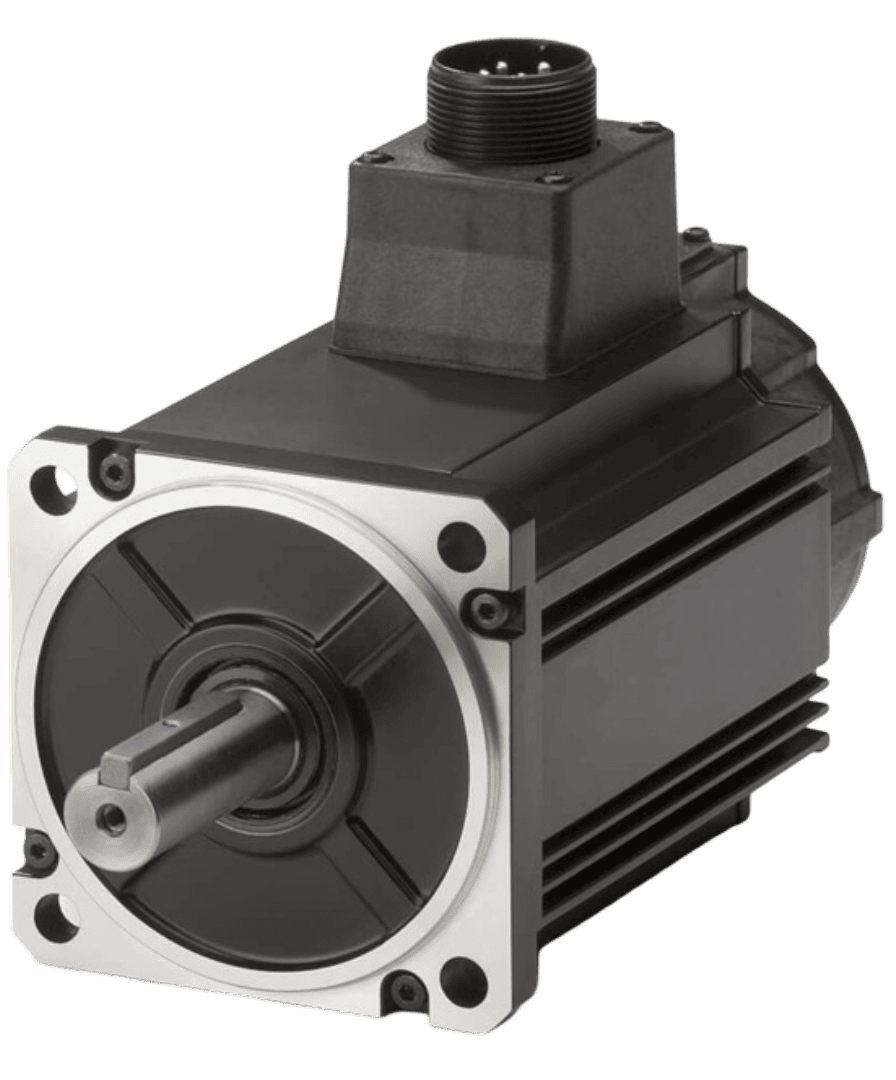

Servo Motors
Supply voltate 12 to 360vdc
Speed: 1000 to 6000 RPM
Torque 1 to 100 Nm
Motor feedback Options: Halls, Halls wiht digital incremental encdoer, SSI, Resolver
Motor with brake: Optional, 24vdc.
Gear box integration Worm, In-liner planetary. (optional)
Application: RCWS, UGV,
BLDC / BLDC Gear Motor
Supply voltate 24 to 48vdc
Speed upto 17000 RPM
Torque 0.1 to 15 Nm
Motor feedback Options: Halls, Halls wiht digital incremental encdoer, SSI, Resolver
Motor with brake: Optional, 24vdc.
Gear box integration Worm, In-liner planetary. (optional)
Applications: UAV, Gimbal, Fin Actuation.

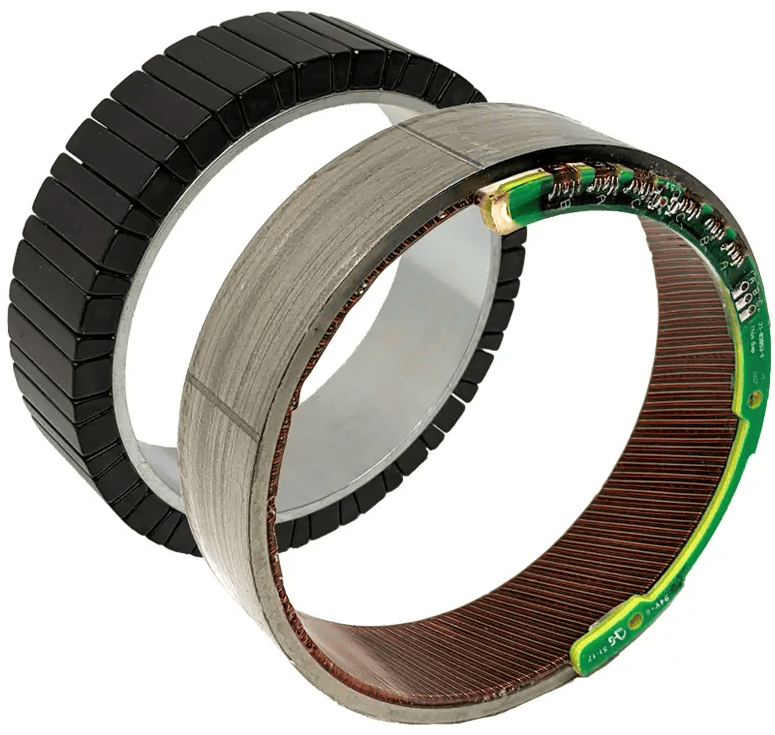

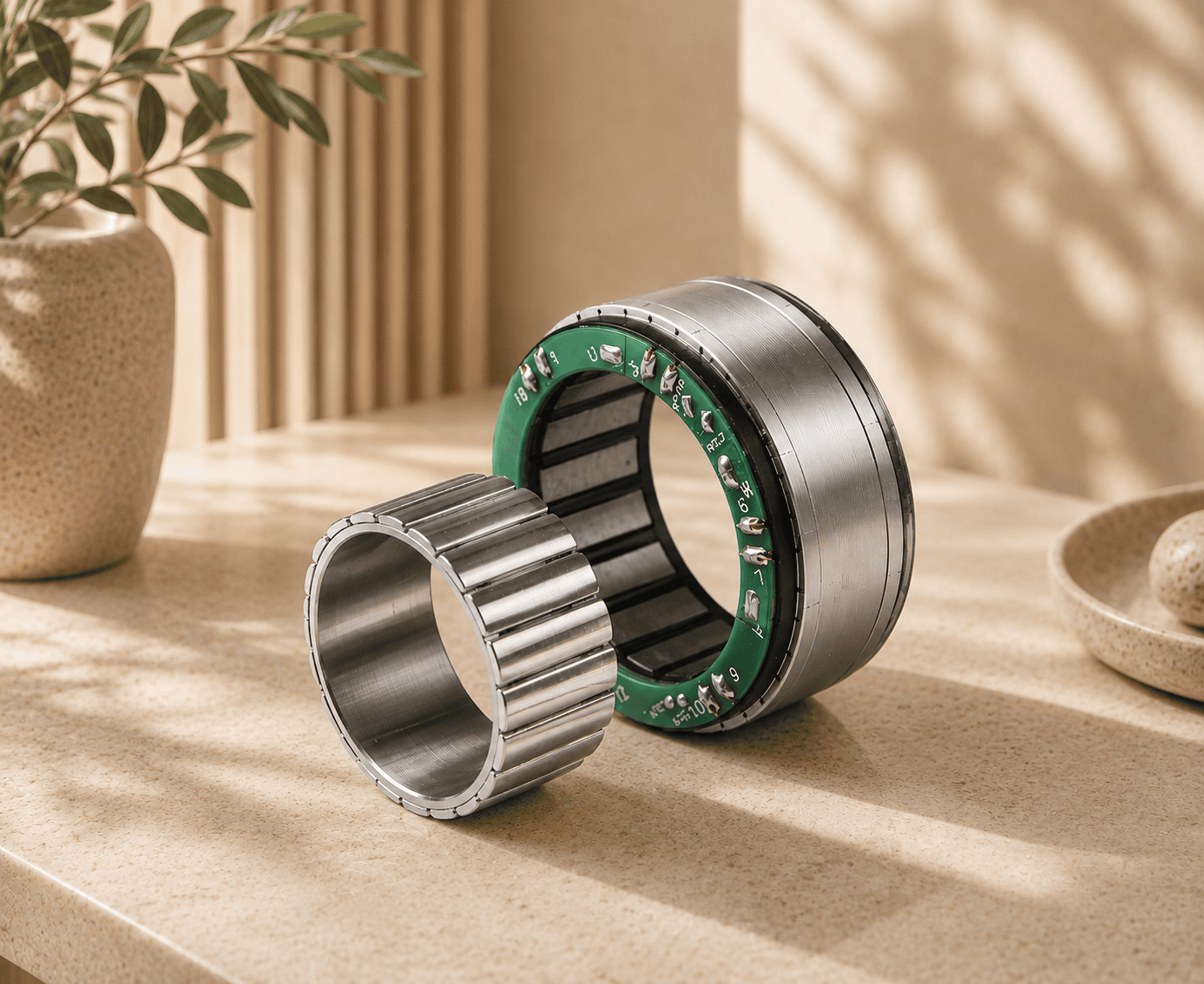

Frameless Torque Motor
Supply voltate 12 to 48vdc
Speed upto 8000 RPM
Torque 0.1 to 200 Nm
Motor feedback Options: Halls.
External diameter from 36 to 127 mm.
High energy NdFeB magnets
Applications: Stabilised platforms, Simulators, Radar, Antena.

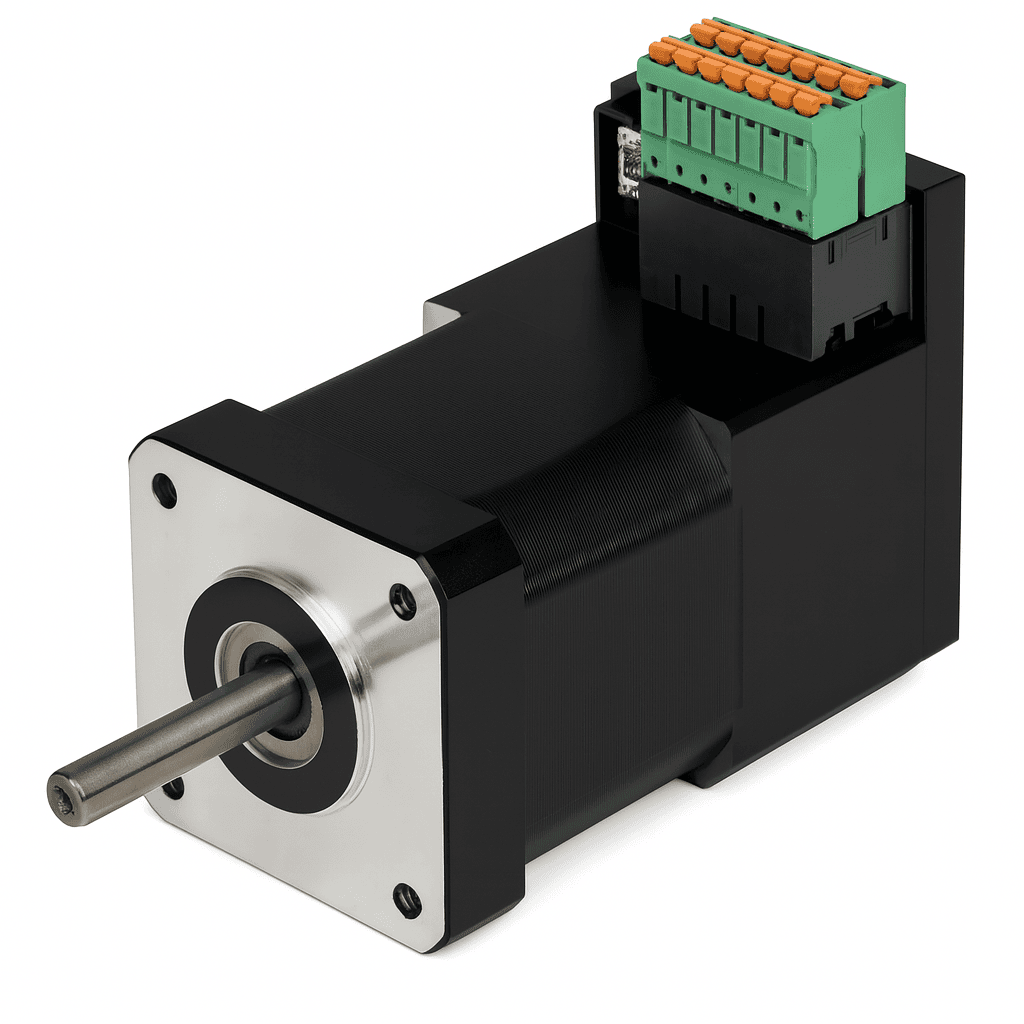

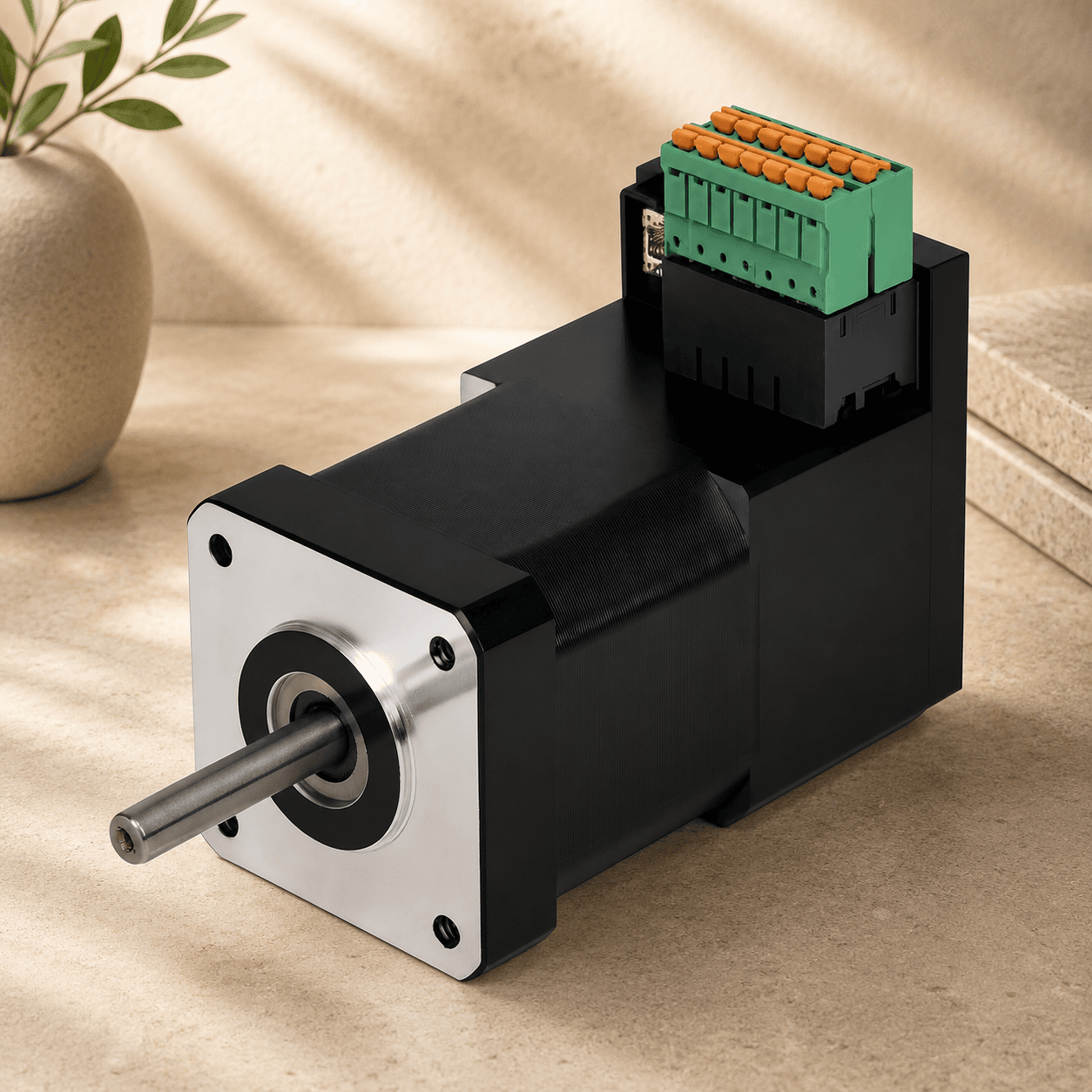

Stepper motor wiht integrated controller
Sophisticated closed loop control enhances motor performance with no step loss
Efficient torque utilization optimizes motor sizing
3 x digital inputs, 1 x digital output
12 Bit absolute encoder, 4096 ppr and update rate 16kHz
Fieldbus: CANopen, EtherCAT
Operates in torque, velocity, and position modes
Applications: Diamond Cutting, Cut to Length, Printing.
